kClient HTML Help: LEASED CONFERENCES

This help consists of:

• General notes
• Example 1: leased conferences using
• Example 2: analysis of event file for leased confernce

General notes

• Beginning from X.15 version in KKO system, there is possible to use leased conferences.
• In intention, leased conferences can work for many users with dividing resorces between them by scheduler.
• Leased conferences have priority with respect to another conferences on the card. It means, that if the conference is used in reservation moment, it will be disconnect, and reserved for lesing.
• In leased conference number of conference (1 or 2) is inserted openly and all schedule records concerning given conference are executed for this according to order in timetable.
• Each leased conference has obligatory access password for subscribers entering himself. This password is put as a parameter in reservation record.
• All data concerns time of conference and called groups or numbers can be registered in event buffer in extra file. It permits to account for such conference and makes it easier.
• Leased conference can't be called as a macros.
• If you create a timetable you have to eliminate eventually time collisions for all external users with note, that new conference disconnects previous one.
• Genarally, leased conference works as phone conference called by KKO card according to timetable or by subscriber's entering. So, it is not possible to mainternance such conference by kClient software with dispatcher access level. Only higher levels (supervisor or administrator) makes it possible.

Following example shows all creation and execution phases for whole leased conference.

In this example new leased conference is created daily within 2:35 and 2:40 pm. Predefined group number 1 and announcement nr 14 ("Please Wait") are called. One minute after calling, the announcement is removed from conference and the leader (dir 101) is called. The conference lasts as long as minimum one participant is in the conference or by obligatory disconnection at 2:40pm.

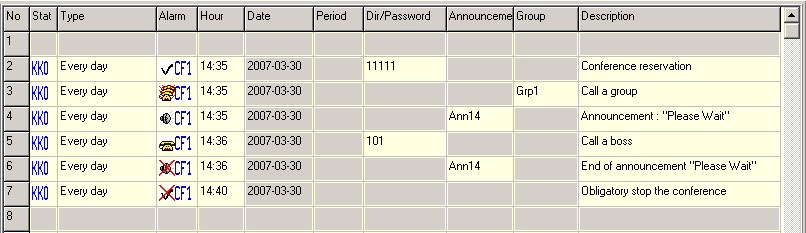

Programmed conference create following timetable records:

• Conference #1 reservation. If you write such record, you have to check if conference no 1 will be free in appointed time. It can't be busy by another timetable record or by "permanent reservation" option (Settings->Conferences). As a matter of fact your leased conference will be run but a collision will appear and pevious conference will be disconnected obligatory. Draw your attrention to fact leased conference always has a password. You are able to find explanation this requirement below.
• Call group no 1. Predefined group no 1 will be called. The group have to be existed of course (option "Database").
• Call announcement no 14. Voice announcement no 14 ("Please Wait" as default) will be emitted in the conference. In this way, each picking up subscriber will hear this voice announcement. Remember, only one announcement may exist in the conference.
• Call subscriber no 101. One minute after calling the group, extra subscriber (dispatcher, leader) will be called. If the boss pick it up, he will be in the conference with group participants at once.
• Announcement removing. In the same moment, an announcement ("Please Wait") will be removed because the conference allready starts. Of course you have to remove the same announcement which called in record no 4 (14th in our example).
• End of conference. This record closes a conference obligatory. If the conference lasts at the moment, it will be disconnected (all participants will hear "End of conference" announcement). Hovewer, real end of conference can be earlier if all subscriber in the conference hang up before appointed time.

It is important notice that always the owner of leased conference is "Lessee". Genarally, it is beside "Phone" and "Dispatcher" only possible owner of the conference. It is result of situation that access to such conference is impossible for both phone via voice menu and dispatcher via kClient software. You can be called by KKO or enter into conference yourself with a password only.

The password in leased conference is obligatory. Even if option "Conference by phone requires a password" is switched off in leased conference a password will be required! The password is inserted in "Conference reservation" record and it is independent of 3 "public" passwords concerning "normal" conference. A password requirement eliminates accidental entries another subscribers into leased conference.

Independent entry into leased conference is always simple (without voice menu system). Despite setting "Entering by voice menu system" subscriber seizes a channel, inserts "special" password ends it by star character and goes into conference directly.

A special case of independent entering into KKO system is situation when subscriber are going to go into voice menu and leased conference is running. In such situation if "normal" password is not required, the subscriber have to insert empty password (* character only) and next he is able to go into voice menu. In the other case, if "normal" password is required, the subscriber inserts a password and the KKO can distinguish if the password concerns leased conference or entering into voice menu. All details about voice menu in KKO is described in : voice menu document.

Event buffer in KKO cards is associated with leased conferences too.

Beginning from X.15 version all events are divided into two groups:

• Main events
• Events for leased conference

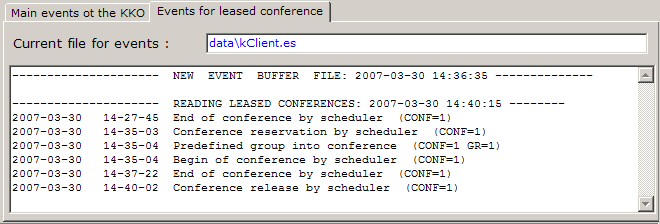

Below you can see all events created in KKO system.

Pay your attention it is possible to account lessee for both time of reservation and real time of using the conference. In our example, the conference starts at 2:35:04pm (the first subscriber picks up) and it stops at 2:37:22pm. Whilst reservation time for lessee lasts from 2:35:03pm to 2:40:02pm. By this different of time, we can see that this conference is ended by hanging up (not for disconnecting by schedule record).

Small delays with respect to timetable are result of priority system in the KKO and few second delay is a normal situation.

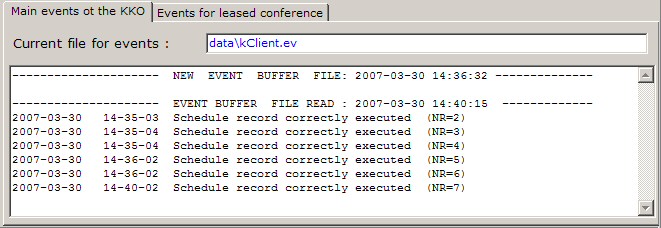

Additionally, in main events file are available pieces of information about all schedule records. This is evidence of execution these records (number of record in "Timetable" bookmark is a parameter).

All these events you can switch on or off in option Settings->Events configuration of course.

Next example shows another case of leased conference and how we can understand event file.

Example of event buffer analyse for leased conferences.

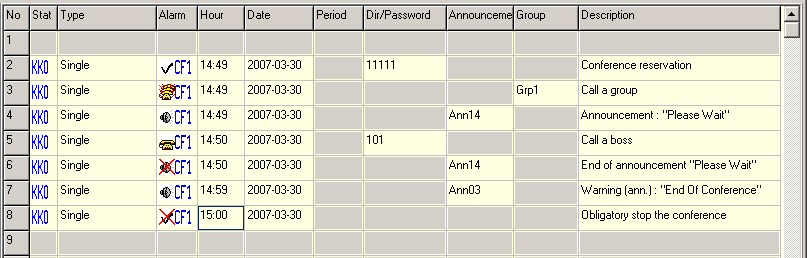

In this example (like a first one) we set a leased conference with predefined group no 1 at 2:49pm. In the first minute all picked up subscribers hear "Please Wait" (announcement no 14), next the announcement disapears and a leader (dir=101) is called. one minute before end of conference, at 2:59 warning announcement no 3 ("Enf Of Conference") will appear. The conference still lasts with an announcement in the background and it is a warning for participants that it will be ended soon. It makes possible to end current threads and smart disconnect the conference.

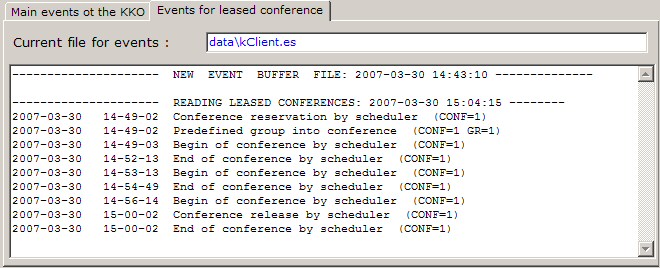

After ending the conference, event file was created and we can see that following actions are executed:

• Conference reservation at 2:49:02pm.
• Calling a group - real beginning of conference at 2:49:03
• End of conference - hanging up all subscribers at 2:52:13
• Second beginning of the conferernce - picking up called subscribers or independent entering into conference with password 11111* - at 2:53:13
• Second end of conference - hanging up all subscribers at 2:54:49
• Third beginning of conference - third conference in the same session - in the one leasing. This is entering themselves too with password 11111* at 2:56:14pm. This is time of entering the first subscriber or announcement. In our example the first subscriber is a phone (becouse an announcement is inserted at 2:59pm).
• Obligatory end of conference - record no 8 action. Because time of releasing the conference is the same as time of ending (3:00:02pm), we can see that this conference is closed obligatory by schedule record.

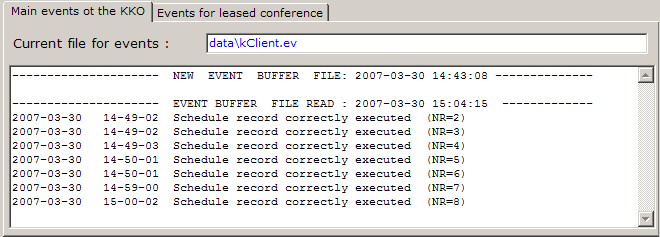

"Main" events for leased conference corresponds with "Events for leased conferences" for all schedule records from timetable.
