kClient HTML Help: MACROS

This help consists of:

• General notes
• View of macros edition window
• Special channel for macro
• Batch file for kClient software
• Example of macro - conference for dispatcher
• Example of macro - quick conference by phone

General notes

• Beginning from X.15 version there is possible to use macros in KKO system. You are able to create and run an internal macro in firmware.
• Internal macros are created based on schedule records in the KKO.
• It is possible to create up to 9 internal macros.
• The tasks are inserted as a schedule records in Timetible bookmark and they are executed in order according on the list.
• It is possible to insert up to 10 records for each macro (but total records number can't exceed 40 records).
• Each macro record includs essential data and time offset parameter (in seconds) in order to be able to delay running moment.
• All types of records in schedule table may be used as macro record e.g. notification, hunting and all records accessible for any conference. Records for leased conference can't be used as a macro records.
• Each makco can be called in 3 ways: by kClient command, by special channel, by voice menu and as a component of external macro saved in batch file.
• In 'macros' bookmark you are able create and edit batchfiles for external macros.
• Batch files for macro make possible to configure and use all often used options e.g. conference with predefined group and next create proper shortcut in desktop. So, it is possible to run kClient software with the macro by one click.

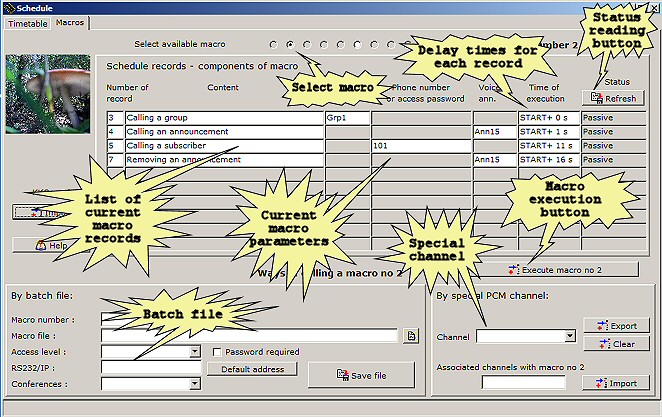

There are following elements on 'macros' bookmark:

• List of records for given macro. By using "Read" button, you are able to read all schedule records concerning all macros. Next, all macro records are filered and diaplayed on the list only these for given macro. So, on the list you can find records for given macro only. Your macro has to consists of maximum 10 schedule records (only first ten are displayed).
• Current macro parameters. All necessary parameters for a record are displayed. It depends on kind of schedule record (call a subscriber, a group etc) There are the same parameters you can see in timetable window.
• Delay times for. Each record includes 'delay time' parameter in seconds. It means time offset for given records with relation to prevoius record on the list. When you create macro record in 'timetable' bookmark, you have to remember that 'Period' data is relative for prevoius record for the same macro. But in our list in 'macro' bookmark the time is relative for start macro moment.
• Status reading button. The last column in the table is status of record. When a macro is running, it is possible to check the status for diagnostics. If you click this button, yoa are able to check which record is in 'active' state. If given record is in active state, it means that it waits for running (delay time).
• Select macro. On the top of the window, there are 9 radiobuttons where yiou are able to select 1 of 9. You can choice defined macro only of course.
• Macro execution button. There is accessible a button for running a macro. If you press this button, yoa are able run a macro for test.
• Special channel. There are keys and edit fields on the bottom of the window in right hand side. They can be used for setting, editing or removing PCM special channel for given macro.
• Batch file. There are keys and edit fields on the bottom of the window in left hand side. They can be used for editing special batch file for given macro.

Special channels for a macro:

• You are able run a macro quickly by calling special PCM channel.
• If you seize a special channel, proper macro will be run and announcement "The comand is executed" will be broadcasted and next the channel will be disconnected automatically.
• You are able to attribute more than one channel for one macro. But you have to remember that special channels are used only for macros so, total number of channels decreases. In this case such channel doesn't work in conference.
• You are able to run a macro by phone too via voice menu with code '0'. But this is more difficult way but all features for menu system (pasword etc.) are available. If you want call a macro by phone quickly, use a special channel method.

Batch file for kClient:

• Name of batch file can be used as a parameter in calling kClient software moment.
• It is possible to run a program, login in selected access level on the card with preselected address (IP or COM).
• The file must exist in proper syntax and it can be created in kClient software.
• The file includes internal macro number, the macro will be executed after login procedure.
• It makes possible to create some icons on the desktop and to manage the conferences by one click.
• Name of batchfile can be full or shorted. If you use short name, default folder is '//macros'. If an extension is idle, default extension is '.kcs'

There is following example for batch file:

You can see that it includes login parameters and macro number.

Example of macro - conference for dispatcher.

This macro makes possible run a makcro via batchfile with conference for predefined group no 1 and a leader (subscriber=204).

Example 1 - Step 1 - Macro records creating

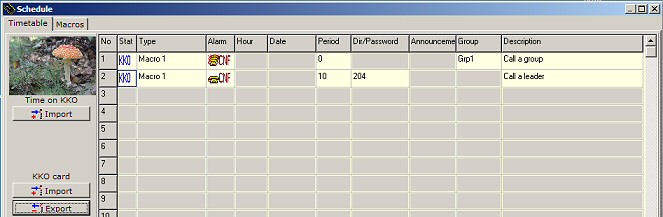

Firstly, you have to create schedule records for a macro. In our example will be created following records :

Call a group. You have not to reserve a conference earlier, becouse this macro will be called by dispatcher. As you know, dispatcher is a owner of the conference - so - the conference will be reserved for him in login moment (One conference may be written in batch file as a parameter of login). So, all macro records concerning "Any conference" will concern this conference which dispatcher is owner in login moment. In this situation first record of macro is group calling. We can write the same notice for end of conference moment. We mustn't insert "Closing a conference" record. The conference will be closed in dispatcher logout moment. "Period" parameter for this record of macro can be empty because we don't want delay start of the macro moment.

Notice! If the first record of the macro was "Conference reservation" second conference (with "Schedule" as a owner) would create and all commands and all records would concern these "Schedule" conference (not "Dispatcher"). Our dispatcher wouldn't access for such conference.

Call a subscriber. We can insert directory number for our leader (204) and delay time 10 seconds. By this delay, subscriber (e.g a leader) will be called some time after participants of the group. If generally time of calling a group is longer, we can increase this delay time (maximum till 90 seconds).

Next, we have to send these records to KKO card

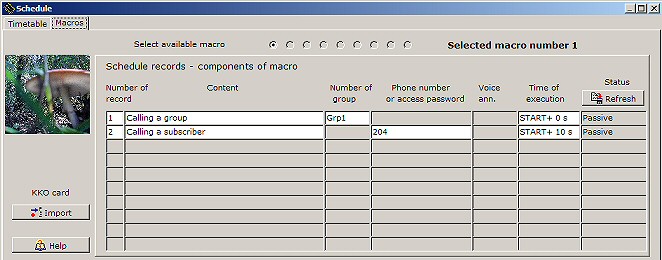

On 'macros' bookmark, we are able to check if a macro exists on the card. To this end we have to read data fronm the card and open 'macros' bookmark.

Example 1 - Step 2 - Batch file creating

Now, we can create batchfile for our macro. We have to do following actions:

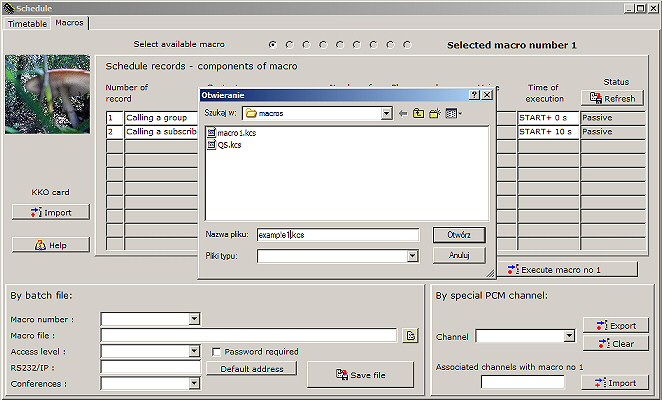

Creation of the file. If this is new file, we have to write the name firstly (e.g. in subfolder \\macros). In our example we have to write name 'example1.kcs' ,acknowledge it and edit proper parameters.

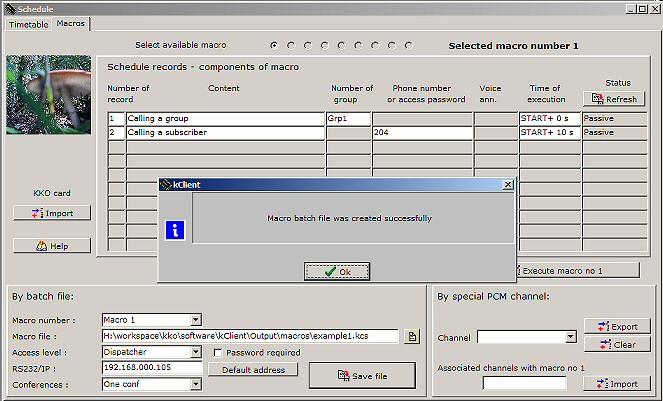

Inserting parameters. We can run macro no 1. In login procedure we can choice 'dispatcher' level, no password and card's address. If you work with one KKO card only and a macro concerns this card only, you are able to use "Default address" button. In edit "Conferences" we can choice "One conference" option in order to be sure that all our commands will concern given conference. After seffings, we can use 'Save file' button and acknowledge window is displayed.

Example 1 - Step 3 - An icon with batch file creating

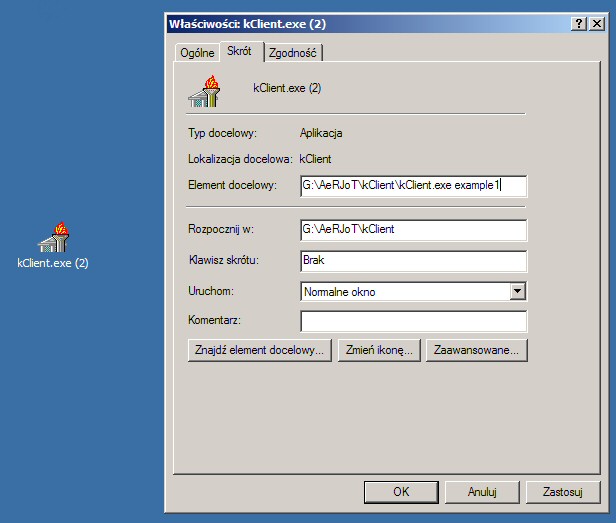

You can create new shortcut on the desktop and open settings window by right mouse button clicking. Next, you can insert batchfile name ('example1' in our example) and at the end change icon name (e.g. 'Macro1' or 'Group1_subs204').

Now, we can click such icon in order to run following actions:

• Run kClient software.
• Logging procedure for "Dispatcher".
• Calling macro no1 (i.e. calling group no1 and next subscriber 204). This is acknowledged by information window on the screen.
• Entering leader into conference.
• When the conference is running, dispatcher is able to manage it and end it too.
• After logout procedure, the conference will be closed automatically.

Example 2 - Quick conference by phone.

This example shows haw create and call a macro (conference with a group with a leader as extra participant) by special channel.

Example 2 - Step 1 - Macro records creating

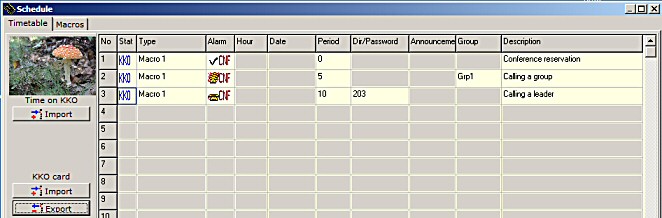

Firstly, we have to create macro records. Now, will be inserted following macro records :

Conference reservation. In this example, macro will be called from phone via special channel. Conference reservation (DTMF code 7) is useless because we make use schedule conference ("scheduler" will be owner of it). So, we have to reserve a conference by special schedule record. In this case, all records concerning "Any conference" will concern this scheduler's conference. Phone - initiator - can be participant of the group too. So, we can use "Period" parameter in order to suscriber-initiator will be able to hear voice information ("The command is executed") before disconnecting and next he will be called with all group toegether.

Calling a group. Time delay parameter may be empty becouse we don't want delay start of macro moment.

Calling additional subscriber (a leader). We can insert subscriber's number (203) and delay time 10 seconds. By this delay, a leader doesn't hear group calling phase. If calling phase time is generally longer than 10 sec, it is possible to increase this time max till 90 secs.

Next, we have to send all data into the card.

On 'macros' bookmark, we are able to check the data in 'macros' bookmark.

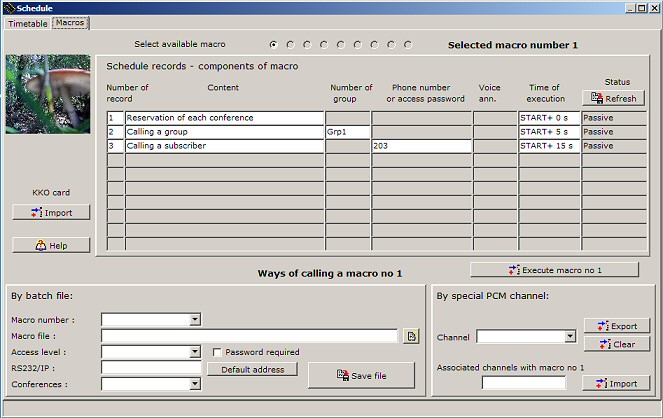

Example 2 - Step 2 - Setting special channel.

Now, will be defined and exported number of PCM special channel for given macro. We have to do following actions:

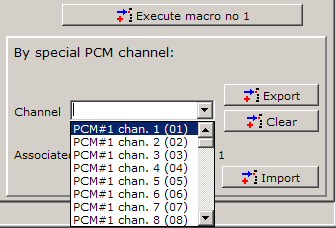

Select a channel. The channel is selected from 60 available channels for the KKO60. For the KKO30 it is nonsense to select channel more than 30 of course.

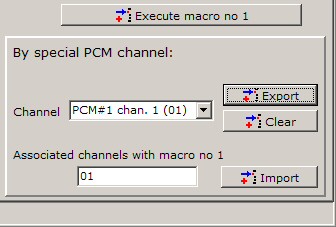

Send all data into the KKO. Now, you have to export piece of data into the KKO by clicking 'Send' key. If special channel will be written corectly, information text appears on the list of channels associated with given macro.
