kClient HTML Help: SETTINGS-TIME / REGISTRATION

The Date/Registration bookmark makes it possible to set date and time on real time clock on the KKO card. Second part of this window concerns registration procedure of the KKO card.

Following options are accessible for time part:

• KKO TIME
  This is the KKO time at reading time moment or at open this bookmark moment.
• CURRENT TIME
  This is current time at PC
• PC TIME
  This is PC time at reading KKO time moment. It makes it possible calculate the deviation.
• DEVIATION
  This is time deviation between KKO time and PC time at reading moment.
• The callendar shows KKO date (after read it).

Following buttons are accessible in the "Time" window:

• SYNCHRONIZATION
  Sends current PC time and date to the KKO card. Note, if the card is non-registered, ajustment will be impossible.
• READ CALLIBRATION
  Reads callibration from the KKO. Systematic time errors you can correct at -5.5 to +11 secs/day range with -0.14 to +0.35 secs/day resolution.
• SEND CALLIBRATION
  Sends new callibration value from PC to KKO card.

Second group of options on this sheet concerns registration data and unblocking procedure.

Beginning from x.14 software version, registration procedure is required on these cards. New KKO card is delivered into customer as a nonregistered. It means, that for 3 months the KKO will be work correctly and without any limits. Within this period of time, you have to run registration procedure. If such procedure is not executed, about ten days before deadline the KKO card will work with troubles. The nearer the worst. Quite after deadline, the conferences will not be accessible for the users. You will be informed about it automatically few days before deadline. Also, it is possible to check register status in any time by clicking proper button on this sheet.

In order to run registration procedure, you have to open register window and run described there required steps. Genarally, each KKO card has unique identifier number. This is simple MAC address for Xport device for KKOv3 version and special code saved in nonvolatile memory for KKOv2. Next, you have to send this identifier to manufacturer of the kard or your seller. You will receive unblocking code as the answer. If you insert this code into proper edit fields and run unblocking procedure, your KKO card will be unblocked permanently. Even if you upgrade firmware and software in the future.

There are two buttons for registration on this bookmark:

• READ DATA
  It makes possible to check registration status on the KKO card. In the answer you receive information if your card is registered or not. In second case, number of days to deadline is showed too. If an error occurs in registration data, number of this error is showed too. In such case, describe your problem, write error number and send it as email to manufacturer or seller please. It is important, because if an error occurs, the KKO card may work wrongly. Like nonregistered card after deadline.
• REGISTER
  After clicking this button, all register buttons and notices becames visible.

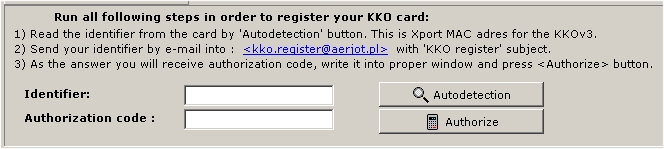

This is the window visible after clicking Register button:

So, you can see that you are able to detect identifier number from the KKO and run registration procedure.

In order to unblock the card, first specify unique identifier number for your card. In the KKOv3 hardware version case this is simply MAC address for Xport device. You are able to read it both by autodetection procedure running and by reading this number from the label on Xport. If your KKO card is in hardware 2 version, you must run autodetection procedure only.

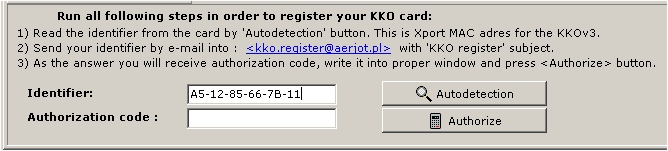

After autodetection procedure, identifier for your card appears in proper window:

Now, you have to send this number to manufacturer of the card or to your seller. You are able to make use of visible link: kko.register@aerjot.pl. If you use this method, you will get proper email form. The second way is simply to send this identifier by your post mail software.

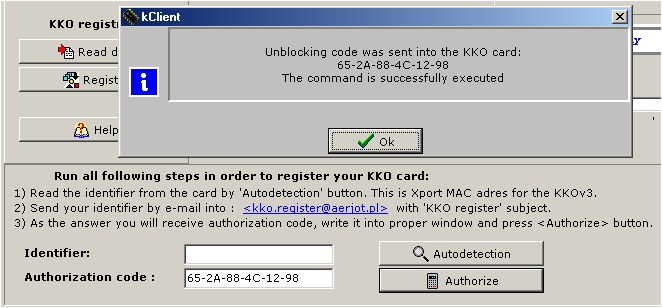

After receiving unblocking code, you have to write it into proper window and click Authorize button. If the code is correct, registration will be successfully and following window will inform you about it:

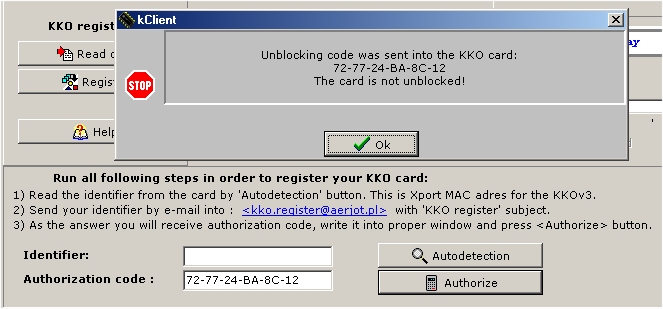

If not following information about an error will appear:
