kClient HTML Help: SETTINGS-CALLS

The bookmark PCM routes makes possible to set up common settings for calls and connections e.g. VOX detectors, parameters and access restrictions in outgoing traffic.

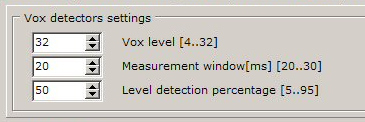

There are following settings for VOX devices :

• VOX level. This is voice (amplitude) level where detection occures. Low value of this parameter means high sensitivity of VOX.
• Measurement window. This is a time frame for measurement of VOX. Big value means that average proccess in in longer time window.
• Level detection. This is number of samples meeting given criteria in measurement window in percentage. Big value means low sensitivity of VOX.

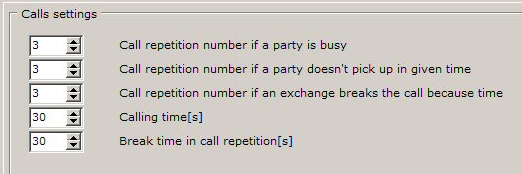

Following connection parameters are able to change too:

• Call repetition if busy. This is the number of recall cycles when a subscriber called by the KKO is busy. Value 0 means that this feture is switched off.
• Call repetition if time. This is the number of recall cycles when a subscriber called by the KKO doesn't pick up the call in given time. If this feature is switched on, the call procedure will be following : call in given time / break in given time. If called party doesn't pick up, this cycle is repetited. If this feature is switched off the call lasts all the time (it isn't broken).
• Call repetition if temporization. This is the number of recall cycles when an exchange stopped a call because subscriber called by the KKO doesn't pick up the call. If this feature is switched on, after stopped call break time will be in use. Next, repetition procedure will be executed. In this case time of calling is determined by an exchange.
• Calling time. This is time of calling described above.
• Break time. This is inter call break time. It is in use for all repetition cases. Always next call is executed after break time defined here.

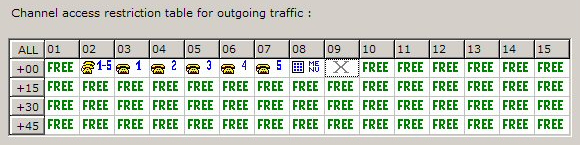

Channel access restriction table for PCM:

This table makes possible to define which channel or group of channels will be in use for every conference. It is possible to limit channels for outgoing traffic. Thanks to this feature it is possible to reserve single channels or channel group for given conference, for all conferences or for voice menu only. There are following values available for PCM channels:

• FREE - free channel - no limitations
• K1-5 - channel for conferences (any 1-5) only
• K1 - channel for first conference only
• K2 - channel for second conference only
• K3 - channel for third conference only
• K4 - channel for fourth conference only
• K5 - channel for fifth conference only
• MENU - channel for voice menu only
• X - channel switched off in outgoing traffic

It is possible to set up all channels (click ALL button), given rows (click : +0 , +15 , +30 , +45) or single channels (click given cell).
